Facebook• Depending on the relative polarity of fed back signal in to the circuit, there
are two types of feedback
> Negative feedback
> Positive feedback
Negative feedback results in Reduced gain
Positive feedback are used in oscillators.

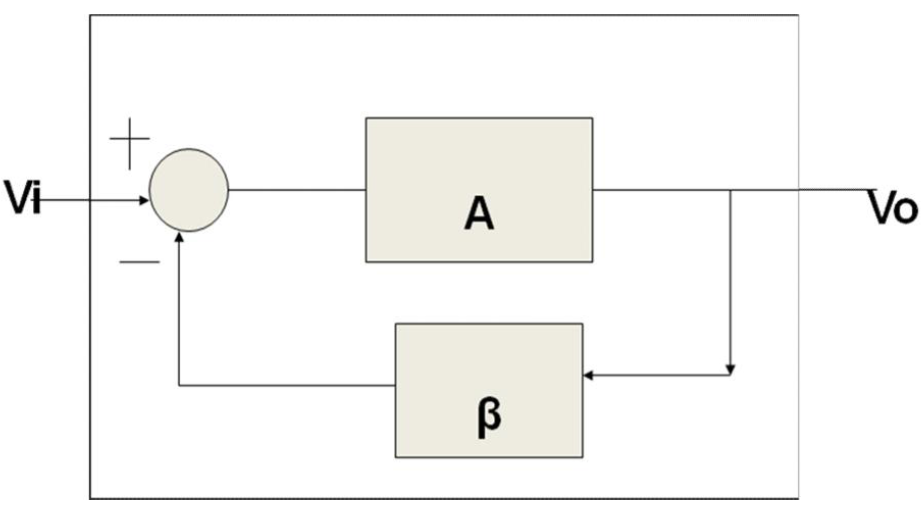

Feedback amplifier
Negative feedback circuits
• Reduces the gain
• Increases input impedance
• Better stabilized frequency response
• Lower output impedance
• Reduced noise
• More linear operation
Feedback connection types
• Voltage series feedback
• Voltage shunt feedback
• Current series feedback
• Current shunt feedback
Ø Here voltage refers to small part of voltage as input to the feedback network
Ø Current refers to tapping some part of output current through feedback
network.
Ø Series refers to connecting feedback signal in series with the input signal
voltage.
Ø Shunt refers to connecting feedback signal in shunt with the input signal
voltage
Ø Series feedback connections increases the input resistance
Ø Shunt feedback connections decreases the input resistance.
