Application of fast and gigabit Ethernet

Posted by AJ × 08:04

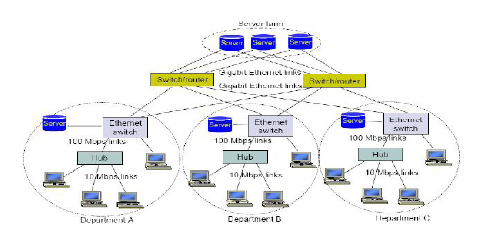

The above figure shows the application of the fast and gigabit Ethernet technology. There are three departments and has the LANS the hosts are connected using a hub, thetopology is star. The link used is 10Mbps. The other two Lans are also implemented in the same way. The three LANs are connected to their respective server using a switch and 100Mbps links.

All the three LANs are linked together using routers and a gigabit link in the backbone.
