Bottom up parsing

Bottom-up parsers in general use explicit stack. They are also known as shift reduce parsers.

Example: Consider a grammar S ->a S b | c and a sentence a a c b b. The parser put the sentence to be recognized in the input buffer appended with end of input symbol $ and bottom of stack has also $.
The parser consults a table indexed by two parameters to be discussed later. The parameters what is on the top of stack and input character pointed by input buffer pointer. Assume for the time being that the table tells the parser to do one of the following activities.

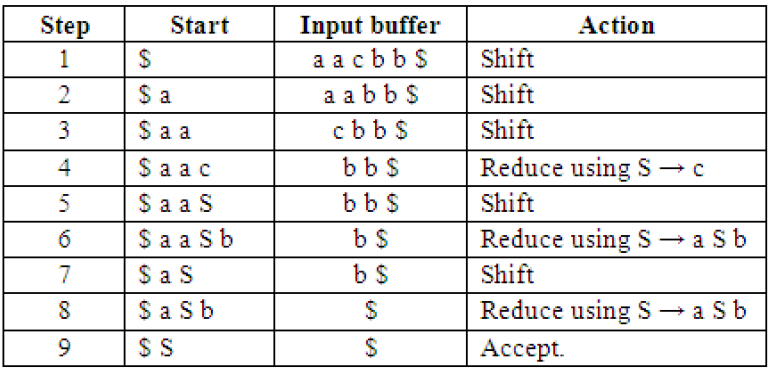

The table formation will be discussed later. From the figure above, after 3 shifts the table tells the parser to reduce in step-4 that is pop c and replace by (i.e., push) ‘S’. In the 5th Step again shift is executed. In 6th step the parser is told to pop 3 symbols and replace it by S, in 7th step again parser is told to shift. In 8th step the parser pops 3 symbols & replaces it by S i.e., reduce action takes place. When top of stack is start symbol i.e., S in this case and input buffer is empty i.e., input buffer is pointing to $ (this indicates there is no more input available). The parser is told to carryout accept action. The parser is able to recognize that aacbb is indeed a valid sentence of the given grammar. We shall see later on how shift reduce and accept actions are indicated.
Example:
Consider another example of parsing using the grammar
Recognize abbcde
Rightmost Derivation
Reduction done in the shift reduce parses is exactly the reverse order of rightmost derivation replace statements.
